Copper Anode

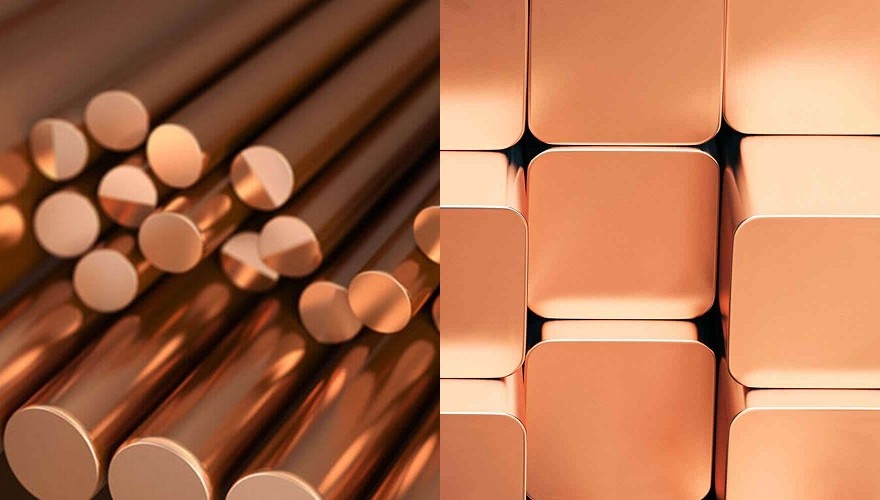

Copper Rod/Hex & Square Bar

OFC & ETP Grade High Precision & Plated

SPECIFICATION

Grade

 OFC Grade ETP Grade

Specification

 C10200 - Cu 99.95%
Oxygen < 10 ppm
Cond – 100% Min. in Annealed
and 98.3% in Half Hard & Full Hard as per (I.A.C.S.) 		C11000 - Cu 99.90%
Oxygen < 400 ppm
Cond – 99.25% Min. in Annealed
and 97% in Half Hard & Full Hard as per (I.A.C.S.)

Dimension / Size Range

 ROD / HEX
(⌀) 8 – 80 MM 		SQUARE BAR
6 X 6 MM to
60 X 60 MM 		ROD / HEX
(⌀) 8 – 80 MM 		SQUARE BAR
6 X 6 MM to
60 X 60 MM

W/T Ratio

 Cross section area 8 to 3200 Sq. mm Maximum

Standards

 SI 1897, IS 191 & IS 613 and BS EN 13610, JSI 3140

Length

 1000 mm to 4500 mm

Hardness

 Annealed, Half Hard & Full Hard as per customer requirement

Surface Treatment

 Tin, Silver, Nickel plating as per customer requirement

Application :

OLTC, Tap Changer, Bushing, Earthing etc.

Industry We Serve :

  • Manufacturing industry

  • Power plants

  • Heavy Engineering

  • Tele-communication

  • Electric Vehicle (EV) & Battery Industry

  • Aerospace & Defense
